PJ3D

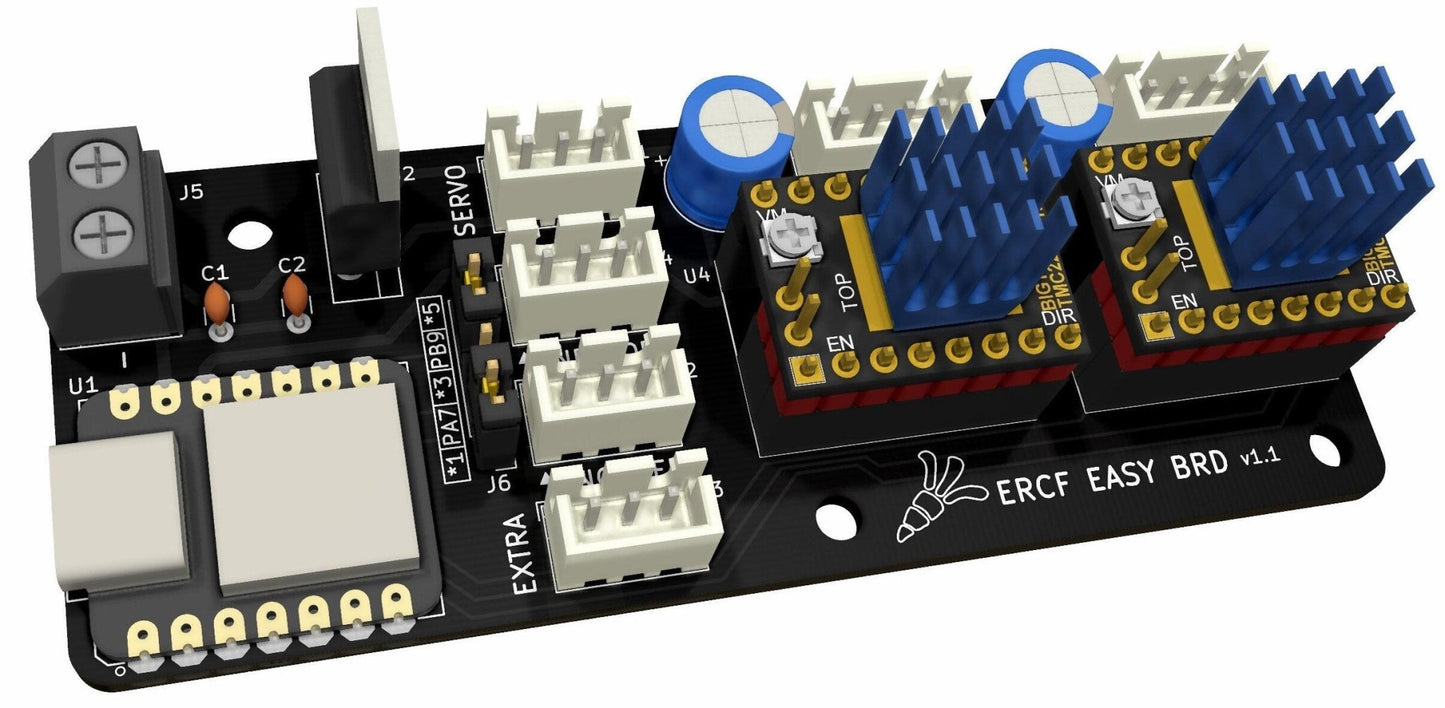

ERCF easy board
ERCF easy board
Regular price
$12.00 USD
Regular price
Sale price
$12.00 USD
Unit price
/
per
Couldn't load pickup availability
Share
ERCF easy board kits
all components need to be installed by user
Items included:
4 - Resistor 10K
1 - Capacitor 0.33uF 25V(BLUE)
1 - Capacitor 0.1uF 25V(MUSTARD)
2 - Capacitor 100uF 25V
1 - Seeeduino XIAO
1 - Voltage regulator L7805CV
2 - Jumper P=2.54
1 - 2P Screw terminal P=5.08
4 - 8P Header socket P=2.54
2 - 2P Header socket P=2.54
1 - 5P Header pin P=2.54
4 - 3P JST-XH header
2 - 4P JST-XH header
1 - Heatsink TO220
1 - screw washer and insulator
1 - M3x8 BHCS
1 - ERCF PCB
More info can be found here :
https://github.com/Tircown/ERCF-easy-brd
A portion of the sale will be donated to the ERCF project and VORON Design
