XOL toolhead PCB

XOL toolhead board by ruiqimao. This toolhead board is designed for the XOL toolhead

NEW
Toolhead boards are now available pre-soldered. Please select either the DIY kit or the Pre-Soldered version

Please note that you need to source your own jst-xh connectors

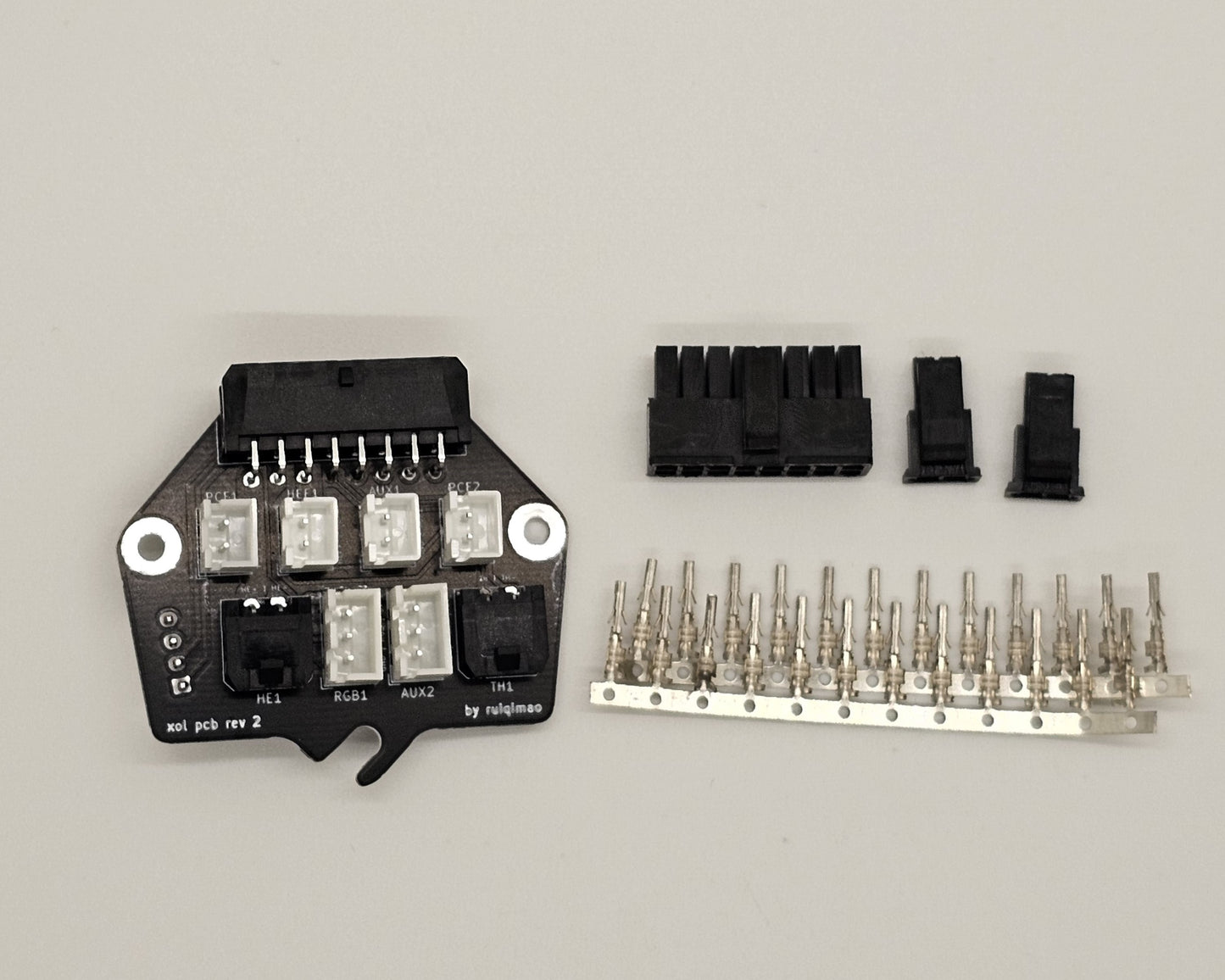

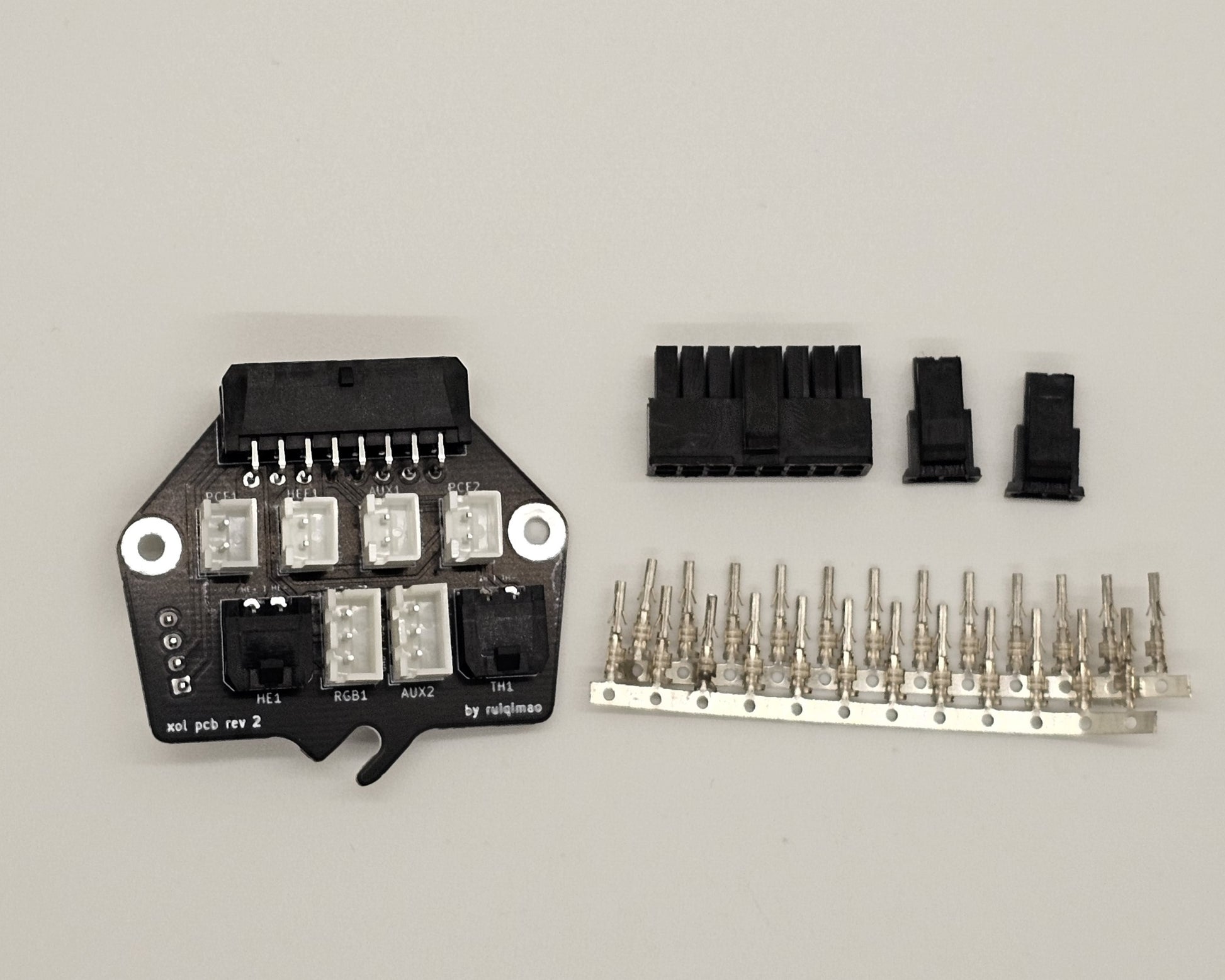

The pre-soldered kit includes:

2 - 1x2P Molex connectors
1 - 2x8P Molex connector
22 - Female Molex crimps (2 extra, just in case)
1 - pre-soldered XOL Toolhead PCB

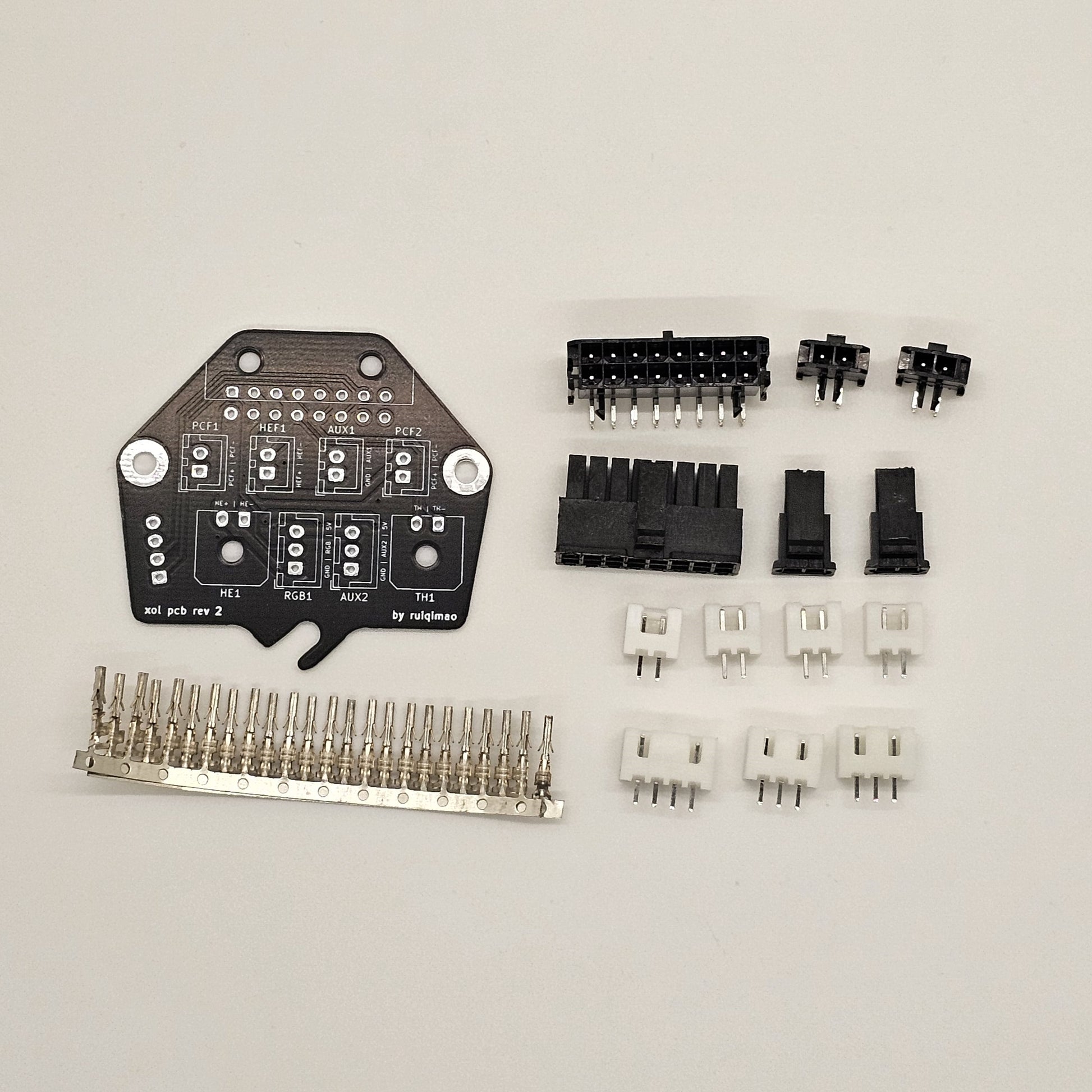

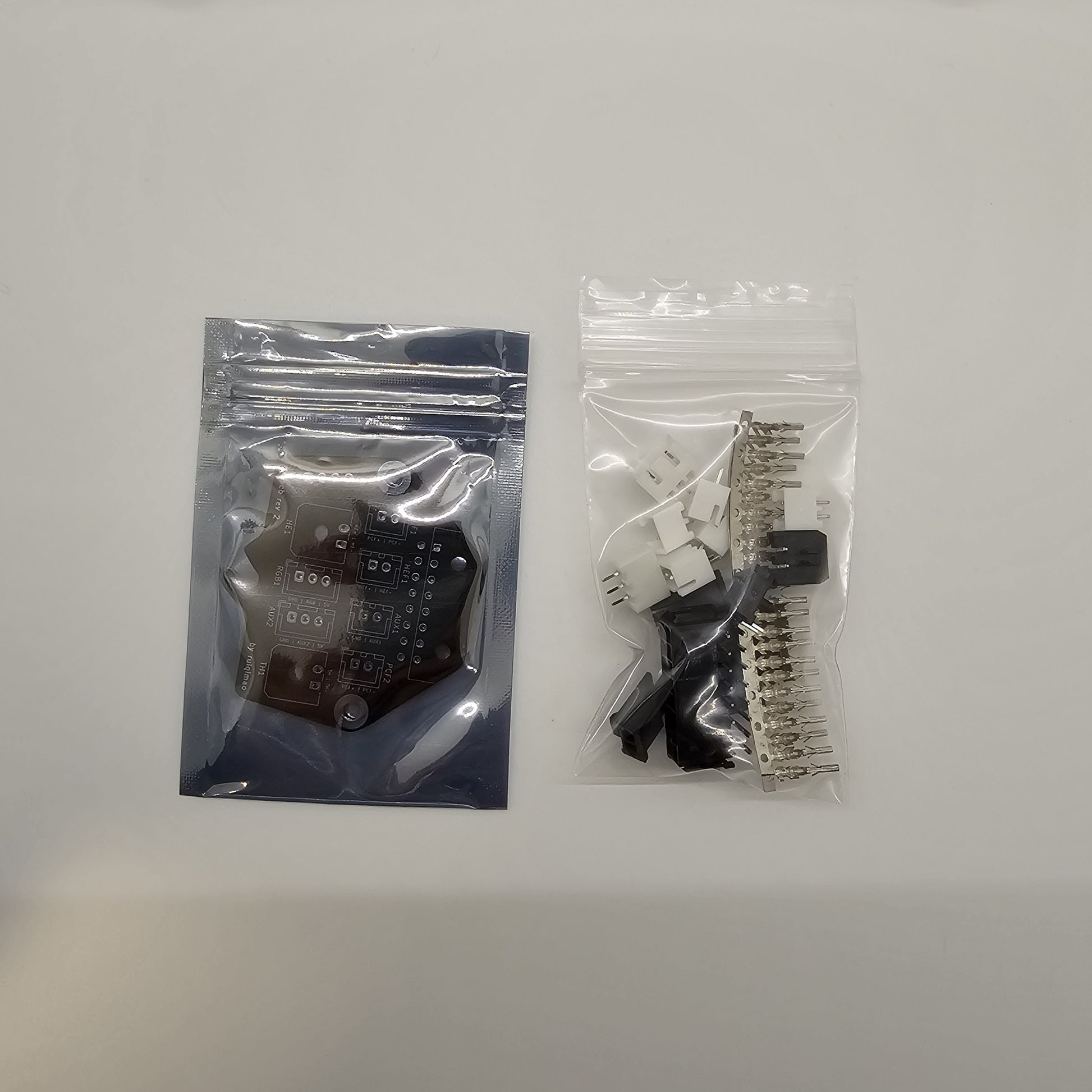

The DIY kit includes:

1 - 4P JST-XH header
2 - 3P JST-XH headers
4 - 2P JST-XH headers
2 - 1x2P Micro-Fit headers and connectors
1 - 2x8P Micro-Fit header and connector
22 - Female Micro-Fit crimps (2 extra, just in case)
1- XOL Toolhead PCB




More info can be found here:
https://github.com/ruiqimao/VoronStuff/tree/main/Xol_PCB
